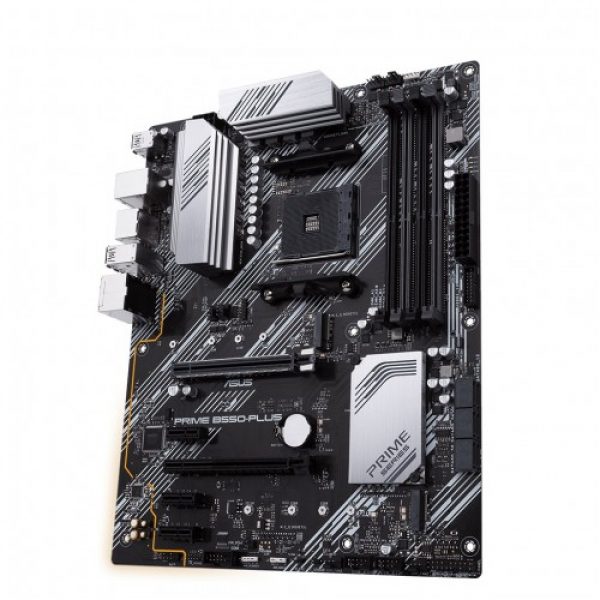

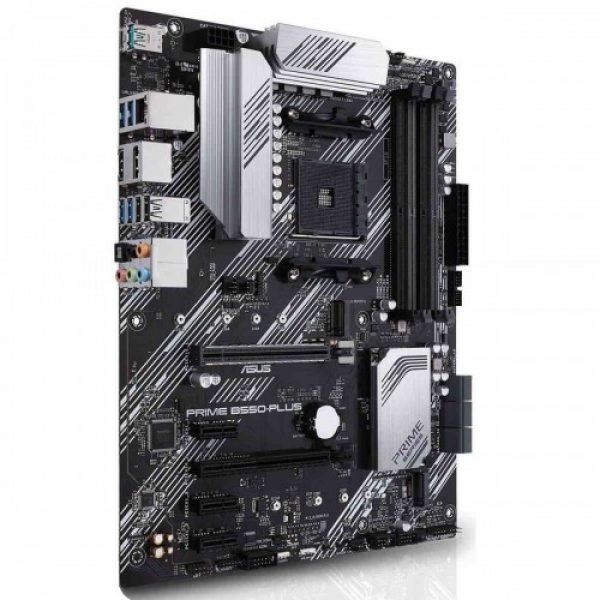

Asus PRIME B550-PLUS DDR4 AMD AM4 Socket Mainboard
Let’s check the overview
-
Model: ASUS Prime B550 Plus
-
AMD AM4 socket: Ready for 3rd Gen AMD Ryzen Processors
-
Aura Sync RGB
-
Ultrafast connectivity
-
Comprehensive cooling
৳ 0.00
āĻ āĻ°ā§āĻĄāĻžāĻ° āĻāĻ°āĻžāĻ° āĻĒā§āĻ°ā§āĻŦā§ āĻāĻžāĻ¸ā§āĻāĻŽāĻžāĻ° āĻā§ā§āĻžāĻ° āĻĨā§āĻā§ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻ¸ā§āĻāĻ āĻ āĻĄā§āĻ˛āĻŋāĻāĻžāĻ°ā§ āĻ¸āĻŽā§āĻĒāĻ°ā§āĻā§ āĻā§āĻ¨ā§ āĻ¨ā§ā§āĻžāĻ° āĻāĻ¨ā§āĻ¯ āĻ āĻ¨ā§āĻ°ā§āĻ§ āĻāĻ°āĻž āĻ¯āĻžāĻā§āĻā§āĨ¤ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¤āĻŋ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻŽā§āĻ˛ā§āĻ¯ āĻ āĻ¸ā§āĻĨāĻŋāĻ¤āĻŋāĻļā§āĻ˛ āĻšāĻā§āĻžāĻ° āĻāĻžāĻ°āĻ¨ā§ āĻ¯ā§āĻā§āĻ¨ā§ āĻŽā§āĻšā§āĻ°ā§āĻ¤ā§ āĻ¯ā§āĻā§āĻ¨ā§ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¤āĻŋ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻŽā§āĻ˛ā§āĻ¯ āĻĒāĻ°āĻŋāĻŦāĻ°ā§āĻ¤āĻ¨ āĻšāĻ¤ā§ āĻĒāĻžāĻ°ā§āĨ¤
ASUS Prime B550 Plus Motherboard
 About This Product
ASUS Prime B550 Plus Motherboard : Complement that AMD builds with the Prime B550 Plus AM4 ATX Motherboard from ASUS. Designed for the AM4 socket and using the B550 chipset, this motherboard can support up to 128GB of DDR4 RAM with frequencies up to 3200 MHz or, if overclocking, up to 4800 MHz. Users can also connect up to six SATA III drives and up to two M.2 drives ranging from 2242 to 22110. One of these slots benefits 3rd Gen AMD processors with PCIe 4.0 x4 performance, while the other slot features PCIe 3.0 x4 speeds. The Prime B550 Plus also supports RAID 0, 1, 10, and 5 for more resilient data storage, and CrossFireX allows for multiple-GPU setups. In addition to one M.2 PCIe 4.0 x16 slot and one M.2 PCIe 3.0 x16 slot, users have access to three PCIe 3.0 x1 slots.
In addition to water- and air-cooling components, the B550 Plus’s internal threaders offer support for two USB 3.2 Gen 1 and four USB 2.0 Type-A ports, as well as a Thunderbolt 3 connection and a TPM for BIOS integrity. The back I/O panel also sports single USB 3.2 Gen 2 Type-A and Type-C ports, alongside four Gen 1 Type-A ports. Two USB 2.0 ports also provide connections for a mouse and keyboard, while monitors can be connected via the HDMI or DisplayPort outputs. Five 3.5mm ports are present for audio, alongside a S/PDIF port. Audio is handled by the Realtek ALC887 7.1 Channel Audio codec and takes advantage of shielding and separate layers for the left- and right-side channels, reducing common audio bugaboos such as interference and crosstalk. An ARGB header is present, and the inclusion of ASUS Aura sync allows users to not only match the Prime B550 to their current setup but also offers central control for compatible RGB components. This motherboard comes with two SATA III cables, as well as a support DVD and a screw package for mounting M.2 SSDs. The ASUS Prime B550 Plus is compatible with the Windows 10 64-bit operating system.
With the Energy Processing Unit, or EPU, you’ll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with an away mode.
Specification
| Basic Information | ||
| Supported CPU | Build-in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors | |
| Chipset | AMD B550 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Expansion Slots | ||
| PCI | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
|
| M.2 Socket | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
| Memory | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | 3rd Gen AMD Ryzen Processors 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
|
| Maximum Mamory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| Display Port (s) | 1 x DisplayPort 1.2 | |
| USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
|
| LAN Port (s) | Realtek RTL8111H ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Optical S/PDIF out port(s) at back panel – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors – Unique de-pop circuit |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
| Others | ||
| Special Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – SafeSlot AURA Sync – Standard RGB headers – Addressable Gen 2 RGB header |
|
