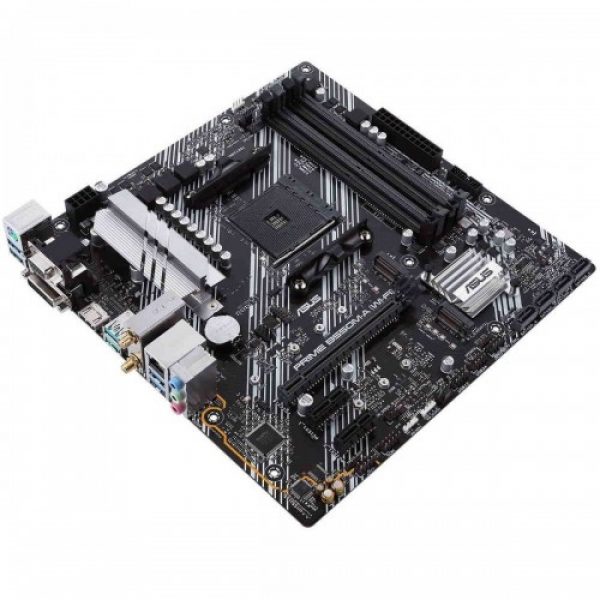

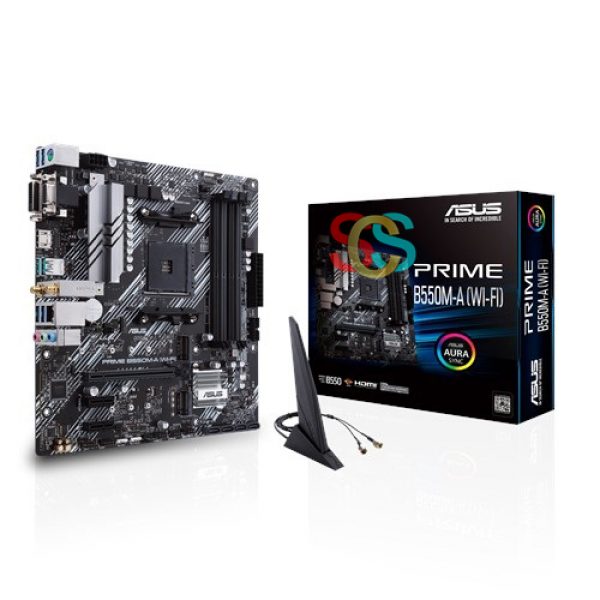

Asus PRIME B550M-A (Wi-Fi 6) DDR4 AMD AM4 Socket Mainboard

Add to wishlistAdded to wishlistRemoved from wishlist 1

Let’s check the overview

  • Model: Asus Prime B550M-A Wi-Fi
  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen Processors
  • Aura Sync RGB
  • Ultrafast connectivity
  • Comprehensive cooling

৳ 15,730 ৳ 14,600

🗣️ প্রোডাক্ট অর্ডারের পূর্বে অবশ্যই সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করুন"
🗣️ গ্রান্ড ওপেনিং অফার এর প্রোডাক্ট cash on delivery তে অর্ডার করে IDB Bhaban Branch থেকে কালেক্ট করুন


📢 অর্ডারের জন্য যোগাযোগ করুন
🤙 01912-905635
📱 01886905635
📱 01886905636

Asus prime-b550m-a-wi-fi mainboard

 About This Product

Asus prime-b550m-a-wi-fi mainboard : Build a powerful, yet compact AMD Ryzen system using . Powered by the AMD B550 chipset, this motherboard supports third-generation AMD Ryzen processors with the AM4 socket. Designed to pack a ton of power into a small form factor, the micro-ATX motherboard takes advantage of the large PCIe 4.0 data bandwidth to deliver high performance for demanding tasks such as gaming, video editing, and more. Up to 128GB of dual-channel DDR4 ECC memory, reaching 4400 MHz when overclocked, can be installed across four memory slots. The PRIME B550M-A also features advanced cooling and supports up to two M.2 SSDs and four SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Its PCIe 4.0 x16 slot can accommodate a high-end graphics card and two PCIe 3.0 x1 slots are available for compatible expansion cards. Or you can use the AMD CPU’s integrated graphics by connecting up to three monitors to the motherboard’s HDMI, DVI-D, and VGA ports.

The PRIME B550M-A has built-in 802.11ax Wi-Fi that’s capable of reaching up to 2.4 Gb/s with compatible devices. Or use the Gigabit Ethernet port for a wired network connection. Connect peripherals such as keyboards and mice to the rear panel’s USB 2.0 ports while reserving the USB 3.2 Gen 2 Type-A ports for transferring data from compatible devices at up to 10 Gb/s. Other features include addressable Gen 2 Aura Sync RGB lighting headers and a Realtek ALC887 7.1-channel audio system. Windows 10 64-bit is required to take advantage of all the motherboard’s features.

The ASUS PRIME B550M-A pairs third-generation AMD Ryzen AM4 processors and the PCIe 4.0’s high memory bandwidth through the B550 chipset for maximum performance.

Or use the Gigabit Ethernet port for a wired network connection. Connect peripherals such as keyboards and mice to the rear panel’s USB 2.0 ports while reserving the USB 3.2 Gen 2 Type-A ports for transferring data from compatible devices at up to 10 Gb/s. Other features include addressable Gen 2 Aura Sync RGB lighting headers and a Realtek ALC887 7.



Specification

Basic Information
Supported CPU Build-in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
Chipset AMD B550
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm)
Expansion Slots
PCI 3rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen with Radeon Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1
M.2 Socket 3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 memory slots
Supported Memory 3rd Gen AMD Ryzen Processors
4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Mamory 128GB
Graphics
Graphics 1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
Connector & Ports
HDMI 1 x HDMI 2.1(4K@60HZ)
USB (s) Rear USB Port ( Total 6 ):
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 ):
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s) Realtek RTL8111H 1Gb Ethernet

Wireless Data Network:
Intel Wi-Fi 6 AX200
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface

Bluetooth: Bluetooth v5.1

Supported Storage Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
Warranty Information
Manufacturing Warranty 03 Years Warranty
Others
Special Features Software Features:
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ ModeASUS Special Features:
ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
AURA Sync
– Standard RGB headers
– Addressable Gen 2 RGB header
ASUS Lighting Control
