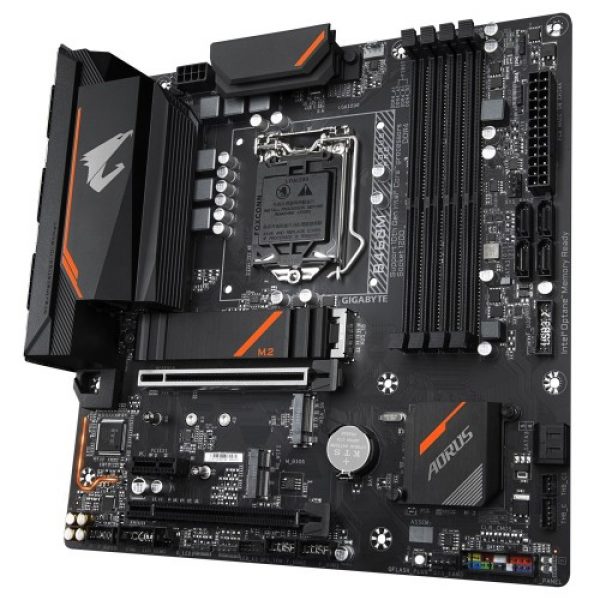

Gigabyte B460M AORUS ELITE DDR4 10th Gen Intel LGA1200 Socket Mainboard
Let’s check the overview
- Model: Gigabyte B460M Aorus Pro
- Chipset: Intel B460 Express
- Intel Socket LGA1200 for 10th Gen Processors
- 4 x DIMM, Max. 128GB DDR4
৳ 11,500 ৳ 10,680
gigabyte-b460m-aorus-elite-mainboard
 About This Product
gigabyte-b460m-aorus-elite-mainboard : Model – Gigabyte B460M AORUS ELITE, CPU Sockets – LGA1200, Chipset – Intel B460, Supported CPU – 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation – 10th, Memory Type – DDR4, Memory MHz – Intel Core i9/i7 (2933/2666/2400/2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/2400/2133MHz), Memory Channel – Dual Channel, Memory Slot – 4, Memory Max. – 128GB, Optane
Memory Support – Yes, Graphic – Intel HD Graphics, Multi-GPU Support – No, PCI Express Slot – 2 x PCI Express x16, 1 x PCI Express x1, Storage Interface – 6Gb/s, M.2 Slot – 2 x M.2 (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support), (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB), LAN Chipset – Intel GbE LAN chip, LAN Speed (Mbps) – 100/1000, Audio Chipset – Realtek ALC1200 codec, Audio Channel – 2/4/5.1/7.1-channel, USB Port – 2 x USB 2.0/1.1, 3 x USB 3.2 Gen1, 1 x USB Type-C port, DVI Port – 1
HDMI Port – 1, DisplayPort (DP) – 1, SATA Port – 6 x SATA, BIOS Type – 1 x 128 Mbit flash, BIOS Model – AMI UEFI BIOS, BIOS Version – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire – No, CrossFire Support – No, Sli Support – No, RaidSupport – 0, 1, 5, 10, Thunderbolt – Yes, TPM Port – Yes, COM Port – No, RGB Support – Yes, RGB Sync – RGB Fusion 2.0, RGB Connector – 2 x RGB LED strip headers, Form Factor – Micro ATX, Supported Operating System – Windows 10, Special Features – Intel B460 AORUS Motherboard with RGB Fusion 2.0 with Digital LEDs, Intel GbE LAN with cFosSpeed, Advanced Thermal Design with Enlarged Heatsink .
Ultra Durable PCIe Armor, USB 3.2 Gen1 Type-C , Dual M.2 slots, M.2 E-key slot for PCIe WIFI Module Upgradable,, Others – Supports 10th Gen Intel Core Series Processors, Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, dvanced Thermal Design with Enlarged Heatsink, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, AMP-UP Audio with ALC1200 with Nichicon MW Audio Capacitors, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Pre-installed IO Shield for Easy and Quick Installation,, Warranty – 3 Year.
Specification
| Basic Information | ||
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package | |
| Chipset | Intel B460 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB) |
|
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 128 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz Support for up to 3 displays at the same time |
|
| Max Shared Memory | 512MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Intel GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|
| Audio | Realtek ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
| Others | ||
| Special Features | Support for APP Center: @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
