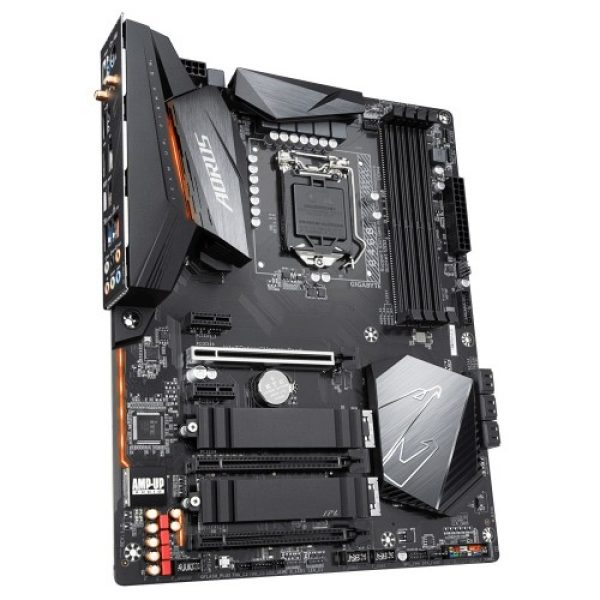

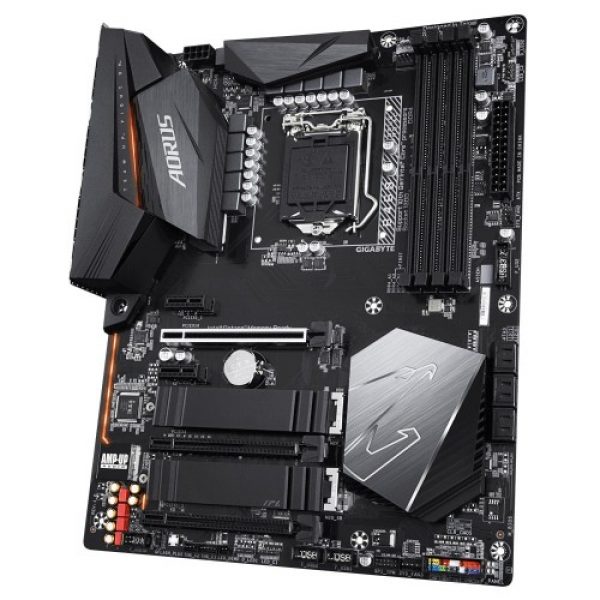

Gigabyte Z490M DDR4 10th Gen Intel LGA1200 Socket Mainboard
Let’s check the overview
- Model: Gigabyte Z490M Ultra Durable
- Supports 10th Gen Intel Core LGA1200 Socket Series Processors
- Multi-Way Graphics Support
- Ultra-Fast PCIe Gen3 X4 M.2
- Intel Optane Memory Ready
৳ 16,280 ৳ 15,190
gigabyte-z490m-ultra-durable-mainboard
About This Product
gigabyte-z490m-ultra-durable-mainboard : Model – Gigabyte Z490M, CPU Sockets – LGA1200, Chipset – Intel Z490 Express, Supported CPU – 10th Generation Intel Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors, Generation – 10th Gen, Memory Type – DDR4, Memory MHz – Intel Core i9/ i7 (4400(O.C.)/ 4333(O.C.)/4266(O.C.) / 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666 / 2400 / 2133MHz), Intel Core i5/i3/Pentium/Celeron (2666/ 2400/ 2133MHz), Memory Channel – Dual, Memory Slot – 4, Memory Max. – 128GB, Optane Memory Support – Yes, Graphic – Integrated Graphics, Multi-GPU Support – AMD Quad-GPU CrossFire and 2-Way AMD CrossFire, PCI
Express Slot – 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, Storage Interface – 6Gb/s, M.2 Slot – 1 x M.2 Socket 3(Type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD), LAN Chipset – Intel GbE LAN, LAN Speed (Mbps) – 100/1000, Audio Chipset – Realtek ALC887, Audio Channel – 2/4/5.1/7.1-channel, WiFi – No, Bluetooth – No, RGB Connector – 1 x RGB LED strip header, Form Factor – Micro ATX, Supported Operating System – Windows 10, Special Features – Intel Z490M Motherboard with Advanced Thermal Design, 2-Way CrossFire Multi-Graphics, Intel GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen1 Type-C, PCIe Gen3 X4 M.2, Smart Fan 5, PCIe X16 Slot Armor with Ultra Durable Design, RGB FUSION 2.0,Supports 10th Gen Intel Core Series Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Ultra-Fast PCIe Gen3 X4 M.2 Connectors,Multi-Way Graphics Support with Dual Armor and Ultra Durable Design,Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP,Intel Optane Memory Ready,Intel GbE LAN with cFosSpeed Internet Accelerator Software,Intel USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1 Type-C
Support,RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips,Pre-installed IO Shield for Easy and Quick Installation,Q-Flash PLUS Update BIOS without Installing the CPU, Memory and Graphics Card, Others – 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 6 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, Warranty – 3 Year, Country of Origin – Taiwan, Made in/ Assemble – China
Specification
| Basic Information | ||
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package | |
| Chipset | Intel Z490 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor: 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) | |
| Memory | ||
| Type | Dual-channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets | |
| Supported Memory | Intel Core i9/i7 processors: DDR4 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/i3/Pentium/ Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Max Shared Memory | 512MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |

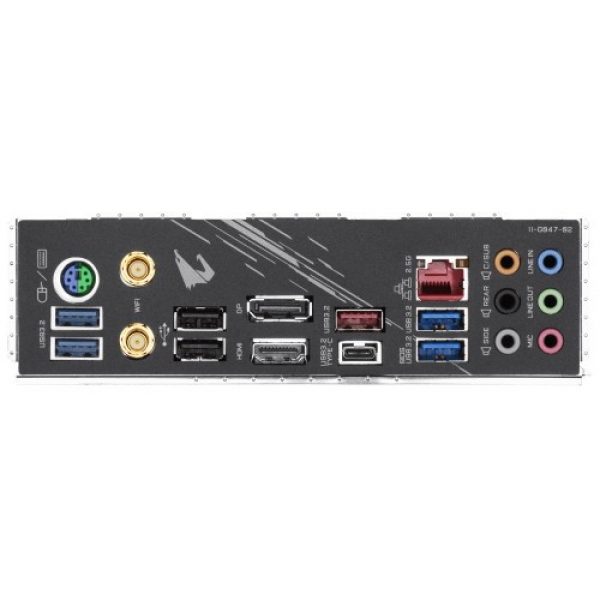

| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Intel GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
